Heavy-duty graduated-mesh field fence with hinge-joint knots. High-tensile steel wire (900-1200 MPa). Smaller mesh at bottom, larger at top for cost efficiency. Class 1/3 galvanizing. Ideal for cattle, horses, sheep, and wildlife. MOQ 50 rolls, 7-15 day delivery.

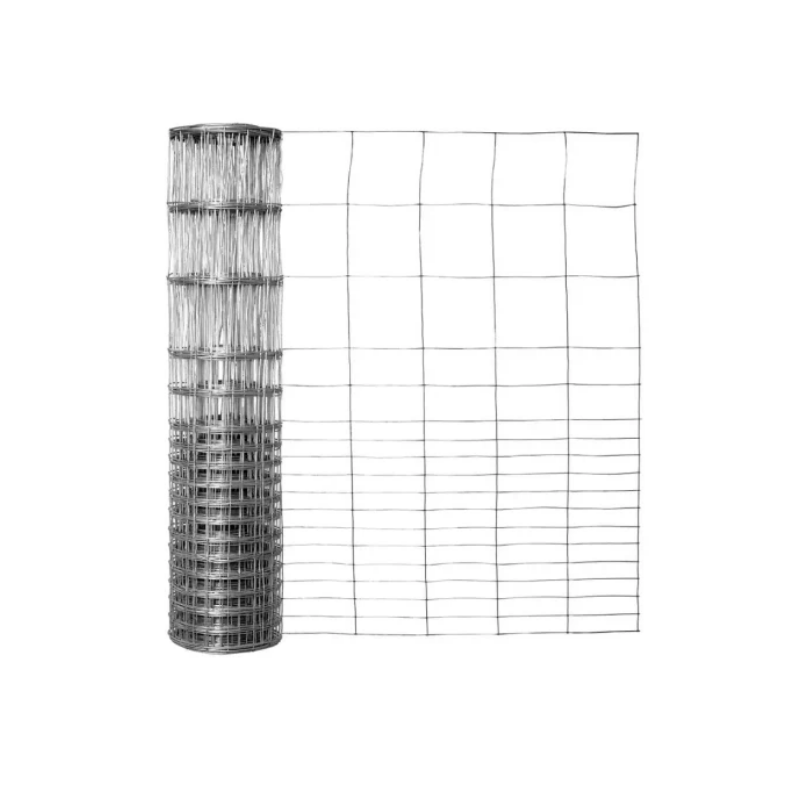

Cattle fence — also known as field fence, grassland fence, or ranch fence — is a heavy-duty graduated-mesh woven wire fence specifically engineered for livestock containment and large-area perimeter fencing. The distinctive graduated mesh design (smaller openings at the bottom, larger at the top) optimizes material usage while providing effective animal control at every height.
## Graduated Mesh Design
The core innovation of field fence is its vertical mesh graduation: - **Bottom (0-30cm)**: 100mm x 150mm — Prevents lambs, kids, and small wildlife from passing through or getting stuck - **Middle (30-90cm)**: 150mm x 200mm — Contains sheep, goats, and pigs while allowing visibility - **Top (90-200cm)**: 200mm x 300mm — Contains cattle, horses, and large wildlife; larger openings reduce weight and cost without compromising effectiveness - **Top Line Wires**: 2.5mm high-tensile wire — Withstands impact from cattle leaning or rubbing - **Bottom Line Wires**: 2.0mm wire — Adequate strength for small animal containment - **Fill (Stay) Wires**: 2.0mm — Vertical wires woven between horizontal line wires
## Knot Type: Hinge Joint
The hinge joint knot is the industry standard for livestock fencing: - **Flexible Connection**: Vertical stay wires wrap around horizontal line wires, creating a hinged joint that flexes under pressure without breaking - **Self-Recovery**: When an animal pushes against the fence, the mesh flexes and returns to its original position — absorbing impact energy that would break welded joints - **Tangle-Free**: Smooth knot design prevents animals from catching horns, hooves, or fur - **High Strength**: Each knot maintains full wire tensile strength (unlike welded joints which create heat-affected zones)
## Key Advantages
- **High Tensile Strength**: Manufactured from high-tensile steel wire (900-1200 MPa), 2-3x stronger than ordinary low-carbon steel. Withstands cattle impact without permanent deformation. - **Graduated Cost Efficiency**: Larger mesh at the top reduces total wire consumption by 30-40% compared to uniform-mesh fencing, lowering both material and freight costs. - **Corrosion Resistance**: Heavy hot-dipped galvanizing (>=120g/m2) ensures 20-25 years service life in rural outdoor environments. Class 3 galvanizing available for coastal areas. - **Long Spans**: High-tensile wire allows post spacing of 5-8m (vs 2-3m for low-carbon fence), reducing post quantity and installation labor by 50-60%. - **Animal Safety**: Hinge joint flex prevents injury. No sharp wire ends or welding burrs. Smooth knot surface protects animal hides. - **Versatile Height Options**: Available 1.2m to 2.0m heights to contain everything from sheep (1.2m) to cattle and horses (1.8-2.0m).
## Technical Specifications
| Parameter | Value | |-----------|-------| | Mesh Type | Graduated hinge-joint woven | | Top Mesh Opening | 200mm x 300mm | | Middle Mesh Opening | 150mm x 200mm | | Bottom Mesh Opening | 100mm x 150mm | | Line Wire Diameter | 2.5mm (top 5 lines) / 2.0mm (bottom) | | Stay (Fill) Wire Diameter | 2.0mm | | Material | High Tensile Steel Wire | | Tensile Strength | 900-1200 MPa (wire) / 400-550 MPa (standard) | | Zinc Coating | >=120g/m2 (Class 1) / >=230g/m2 (Class 3) | | Knot Type | Hinge joint | | Hinge Gauge | 2.0mm stay wires, wrap-knotted | | Height Options | 1.2m, 1.5m, 1.8m, 2.0m | | Roll Length | 50m (standard) / 100m / 200m | | Line Wire Count | 7-line (1.2m), 8-line (1.5m), 10-line (1.8m), 11-line (2.0m) | | Post Spacing | 5-8m (high-tensile) / 2-3m (standard) | | Standard | ASTM A116, AS/NZS 2423, YB/T 4028 | | Certification | ISO 9001, CE |
## Height & Line Wire Configurations
| Height | Line Wires | Typical Use | Post Spacing | |--------|-----------|-------------|--------------| | 1.2m (4ft) | 7 lines | Sheep, goats, pigs, boundary | 5-6m | | 1.5m (5ft) | 8 lines | Cattle (light), horses, deer | 5-7m | | 1.8m (6ft) | 10 lines | Cattle (standard), horses, elk | 6-8m | | 2.0m (6.5ft) | 11 lines | Cattle (heavy), bison, wildlife | 6-8m |
## Galvanizing Classes
1. **Class 1 (Standard)**: >=120g/m2 zinc coating. Suitable for dry and temperate rural environments. Service life 15-20 years. 2. **Class 3 (Heavy)**: >=230g/m2 zinc coating. Required for coastal, humid, or acidic soil environments. Service life 25-30+ years. 3. **Class 40 (Zinc-Aluminum)**: 5% aluminum-zinc alloy coating. Superior corrosion resistance. Service life 30+ years. Premium pricing.
## Complete Fence System
A cattle fence system includes: - **Field Fence Rolls**: Graduated mesh panels in 50m/100m rolls - **Line Posts**: T-posts, round wood posts, or steel pipe posts (driven or concreted) - **Corner Posts**: Heavy-duty wood or steel H-posts with braces - **Gate Panels**: Steel tube gates (4m-6m wide) with slam-latch hardware - **Tensioning Hardware**: In-line strainers, tension springs, wire vises - **Fasteners**: Fence staples, clips, or wire ties for attaching mesh to posts - **Optional**: Top rail (wooden or steel), electric wire offset brackets
## Applications
### Livestock Containment - **Cattle Ranches**: Perimeter and cross-fencing for beef and dairy operations - **Horse Farms**: Safe, visible fencing for pastures and paddocks - **Sheep & Goat Operations**: Predator-deterrent boundary fencing - **Pig Farms**: Secure containment for breeding and finishing operations
### Wildlife Management - **Nature Reserves**: Large-animal exclosure fencing - **Game Ranches**: Elk, bison, and deer containment - **Highway Wildlife Barriers**: Prevent animal-vehicle collisions
### Agricultural - **Farm Boundaries**: Property line demarcation and security - **Crop Protection**: Exclude grazing animals from cultivated areas - **Orchard Perimeters**: Deter deer and livestock from orchards and vineyards
### Infrastructure - **Highway Right-of-Way**: Boundary fencing for rural highways - **Railway Corridors**: Animal exclusion along rail lines - **Airport Perimeters**: Wildlife hazard management
## Packaging & Delivery
- **Packaging**: Rolls wrapped in waterproof plastic film. Custom labeling available. - **Container Loading**: 20ft GP ~ 200-400 rolls; 40ft HQ ~ 400-800 rolls (depends on height and length) - **Lead Time**: 7-15 days for standard specifications; 15-25 days for custom heights and Class 3 galvanizing - **Shipping**: FOB Tianjin / CIF / DDP. Sea freight to major ports worldwide.
## Quality Assurance
- ISO 9001:2015 certified manufacturing process - High-tensile wire test reports (tensile strength, elongation) - Zinc coating weight test (per batch, ASTM A90/A90M) - Hinge joint knot pull-apart test (per batch) - Mesh dimension verification: opening size, wire diameter, line count - Roll length and height verification - SGS/BV third-party inspection available upon request
## Why Choose Angu Wire Mesh?
- 15+ years manufacturing experience in Anping — China's Wire Mesh Capital - Factory-direct pricing — no middleman markup - Full graduated mesh range: 6-line to 11-line, 1.0m to 2.4m heights - Multiple galvanizing classes: Class 1, Class 3, Zinc-Aluminum - Complete fence system supply: mesh + posts + gates + hardware - Custom mesh graduation patterns for specific livestock species - Export to 30+ countries — North America, Australia, Europe, Africa - Dedicated project manager for each order - 24-hour quote turnaround
Heavy-duty graduated-mesh field fence with hinge-joint knots. High-tensile steel wire (900-1200 MPa). Smaller mesh at bottom, larger at top for cost efficiency. Class 1/3 galvanizing. Ideal for cattle, horses, sheep, and wildlife. MOQ 50 rolls, 7-15 day delivery.
| Mesh Type | Graduated hinge-joint woven |
|---|---|
| Top Mesh Opening | 200mm x 300mm |
| Middle Mesh Opening | 150mm x 200mm |
| Bottom Mesh Opening | 100mm x 150mm |
| Line Wire Diameter | 2.5mm (top 5 lines) / 2.0mm (bottom) |
| Stay Wire Diameter | 2.0mm |
| Material | High Tensile Steel Wire |
| Tensile Strength | 900-1200 MPa (wire) |
| Zinc Coating | >=120g/m2 (Class 1) / >=230g/m2 (Class 3) |
| Knot Type | Hinge joint |
| Height | 1.2m, 1.5m, 1.8m, 2.0m |
| Line Wire Count | 7-11 lines (height dependent) |
| Roll Length | 50m (standard) / 100m / 200m |
| Post Spacing | 5-8m (high-tensile) / 2-3m (standard) |
| Standard | ASTM A116, AS/NZS 2423, YB/T 4028 |
| Certifications | ISO 9001, CE |
| Service Life | 15-20 years (Class 1) / 25-30+ years (Class 3) |
| MOQ | 50 pieces |
FOB Tianjin, per roll
