Highway & Industrial Noise Barrier — Factory-Direct Pricing

STC 32–34 · NRC 0.85 · Hot-Dip Galvanized 15+ Years · FOB/CIF to Southeast Asia

ISO 9001:2015SGS Tested10-15 Day ProductionCAD Support
Installed highway noise barrier — 3 m absorptive steel panels on H-beam posts
32–34
STC
0.85
NRC
15+
Coating Years

Direct Factory · Manufacturing Since 2014

10,000 m² facility · 5,000 t annual output · 30+ export countries

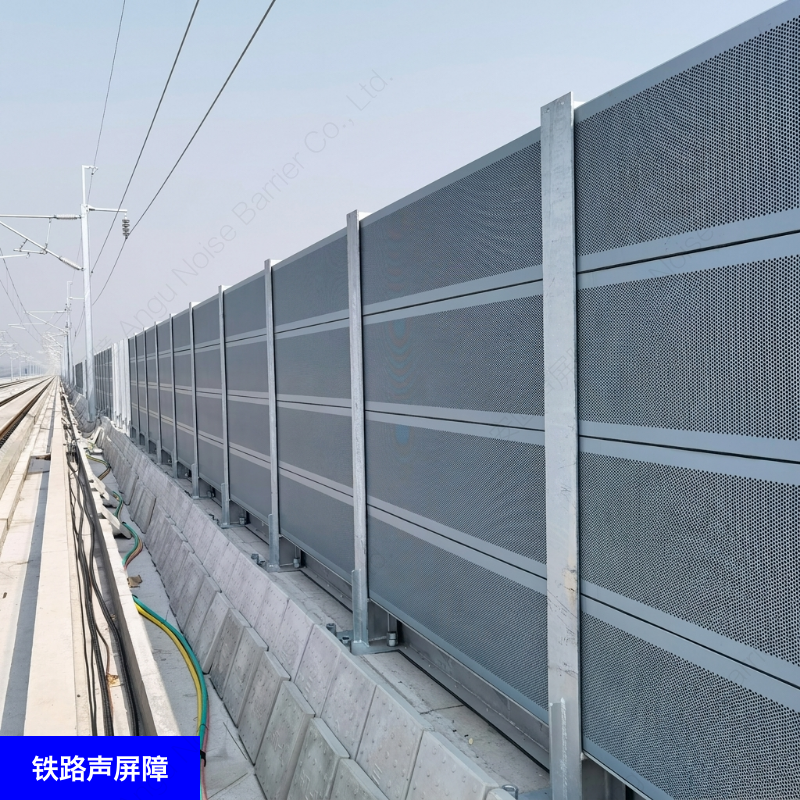

Rail Transit Noise Barrier

Rail Transit Noise Barrier

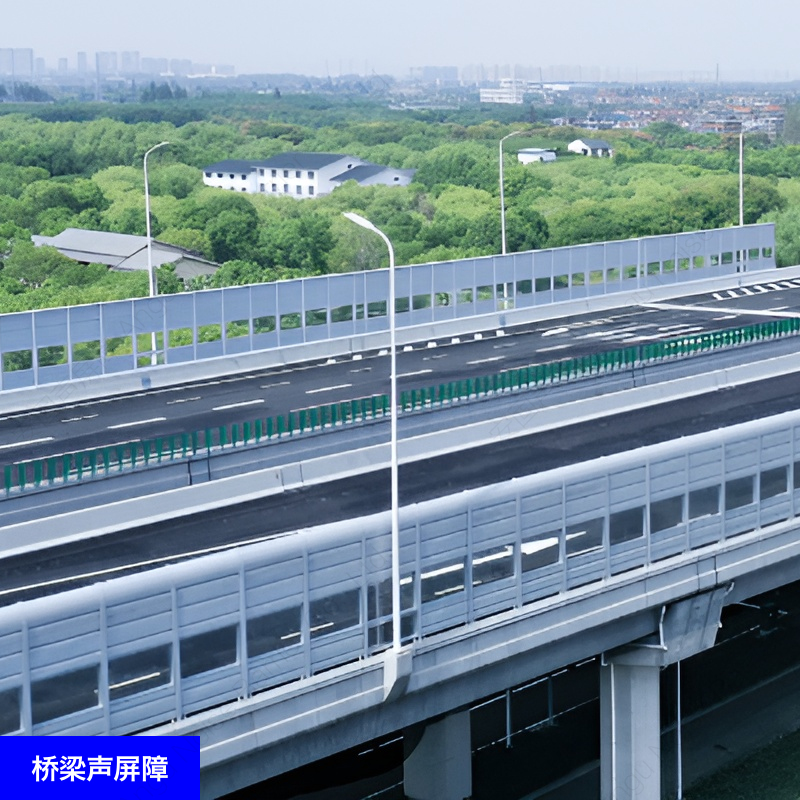

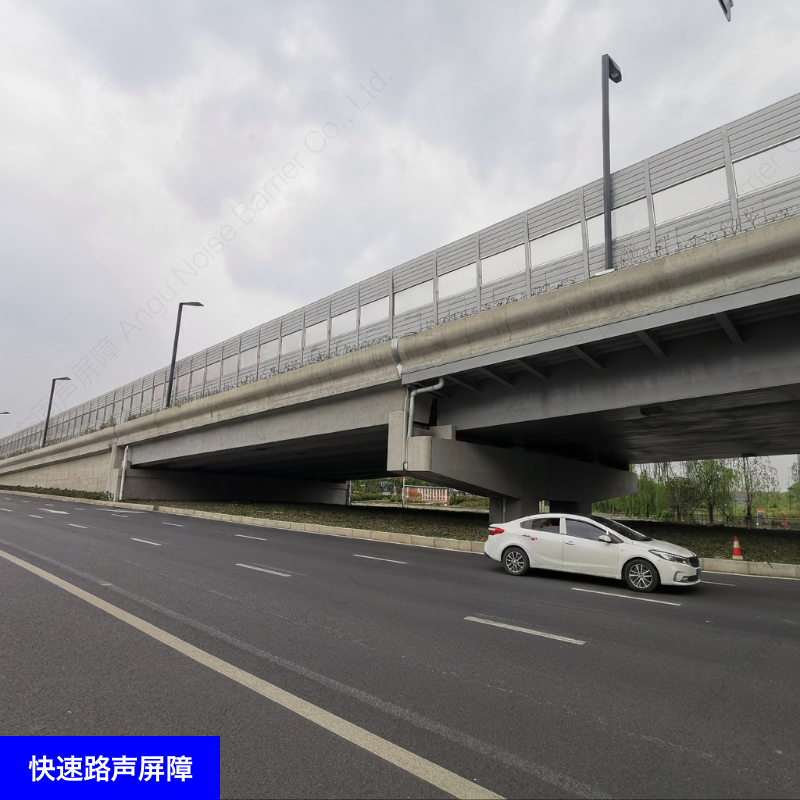

Bridge Noise Barrier

Bridge Noise Barrier

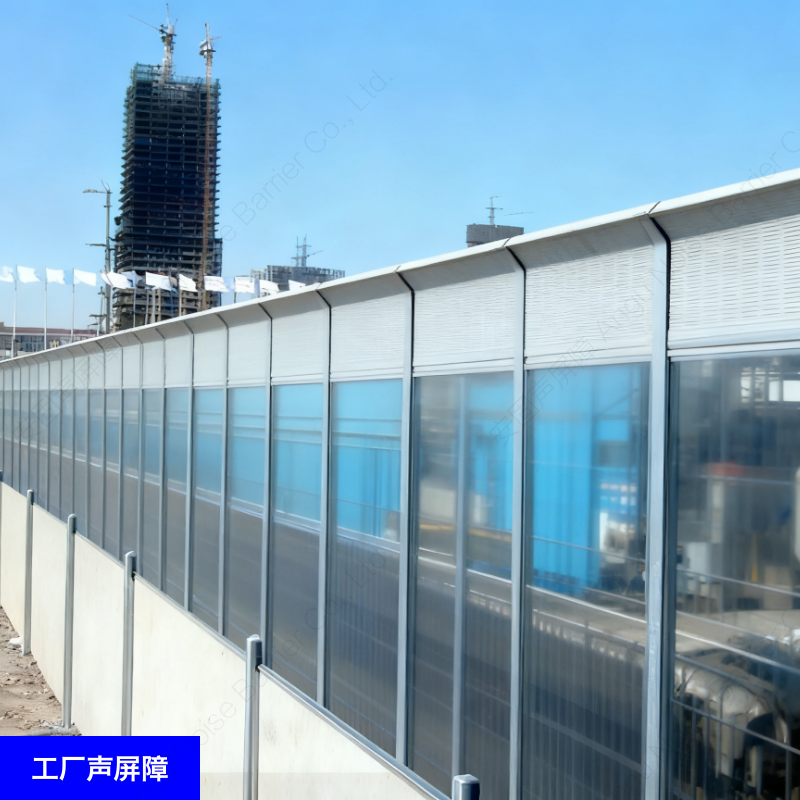

Factory Noise Barrier

Factory Noise Barrier

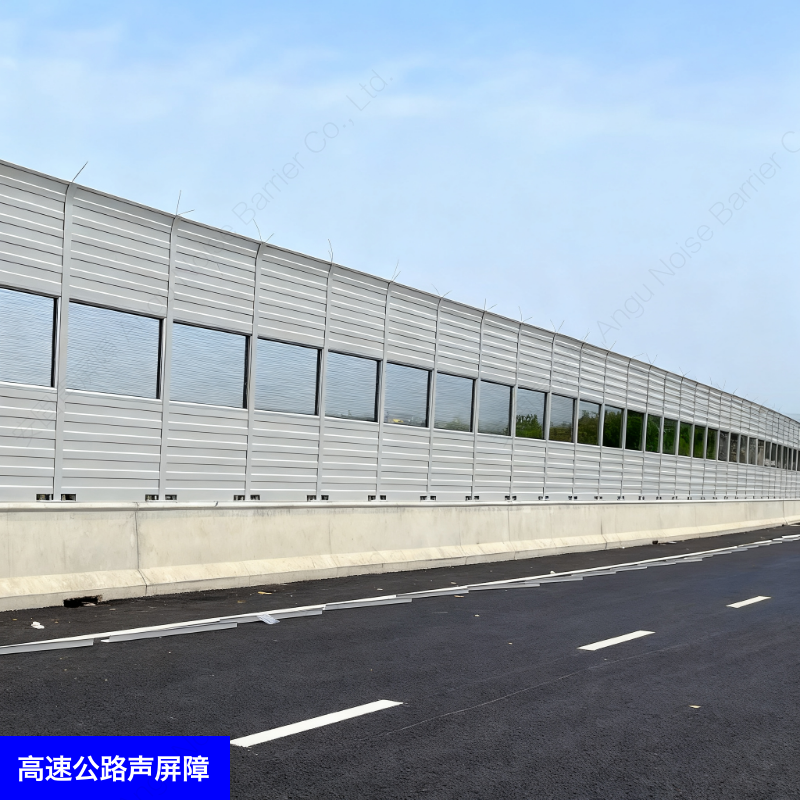

Highway Noise Barrier

Highway Noise Barrier

12+
Years in Business
10,000㎡
Factory Area
5,000 t
Annual Output
30+
Countries

Certifications & Testing

📋
ISO 9001:2015
Quality Management System
🔬
SGS / BV Testing
3rd-Party Inspection Available
🔊
Acoustic Lab Tested
STC 32–34 dB / NRC 0.85
🧂
Salt Spray >2000h
Hot-Dip Galvanized Durability

Real Project Gallery

On-site installation photos from highway, factory, and bridge projects we have delivered

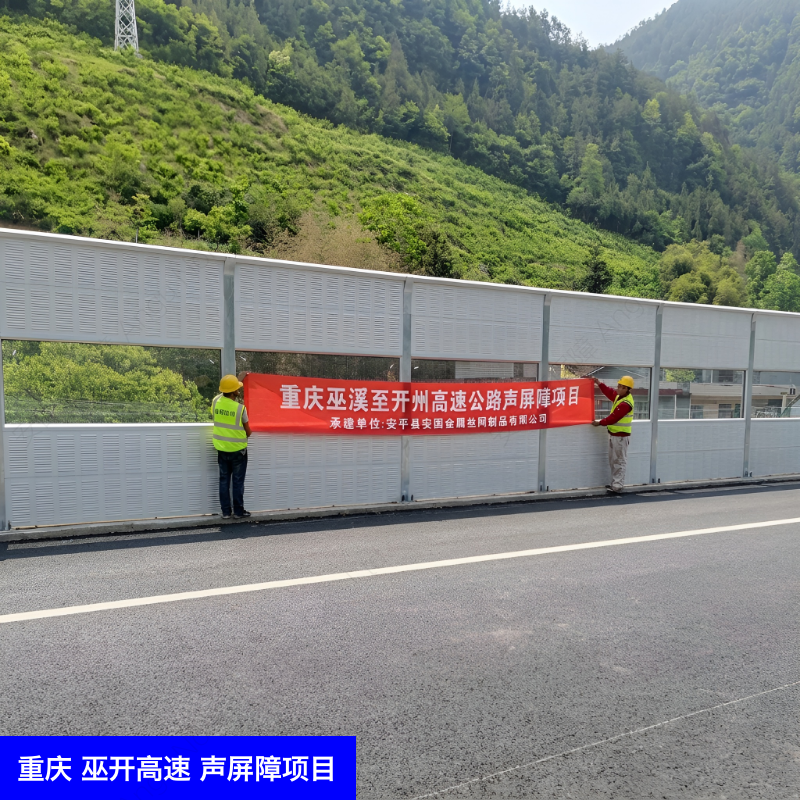

Highway Noise Barrier – Chongqing

Highway Noise Barrier – Chongqing

Chongqing, China

3.0m perforated steel + mineral wool, STC 32 · NRC 0.85

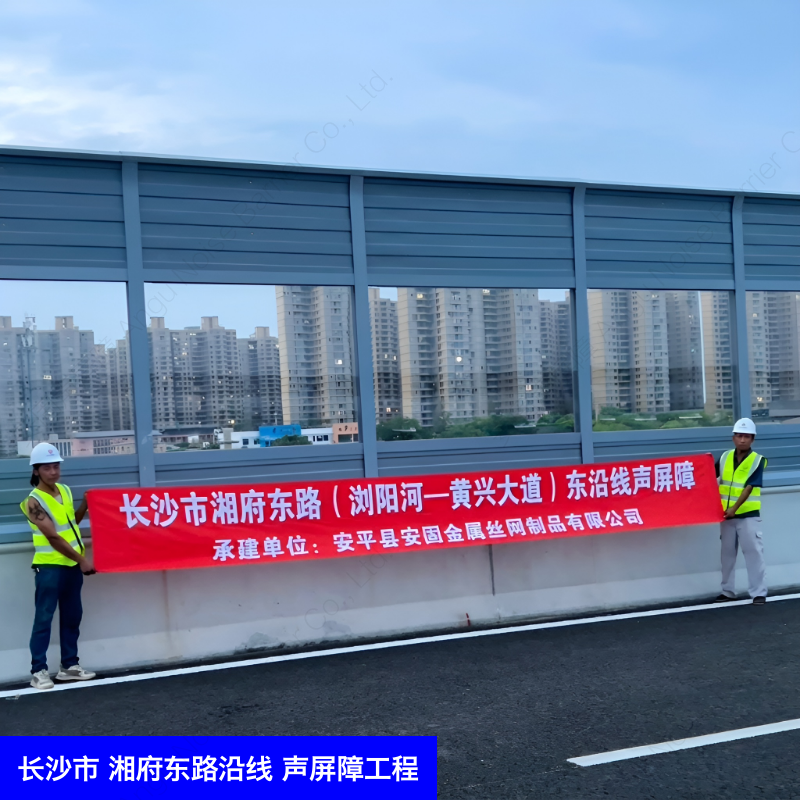

Viaduct Noise Barrier – Changsha

Viaduct Noise Barrier – Changsha

Changsha, Hunan, China

Transparent acrylic + aluminum frame, STC 30–33

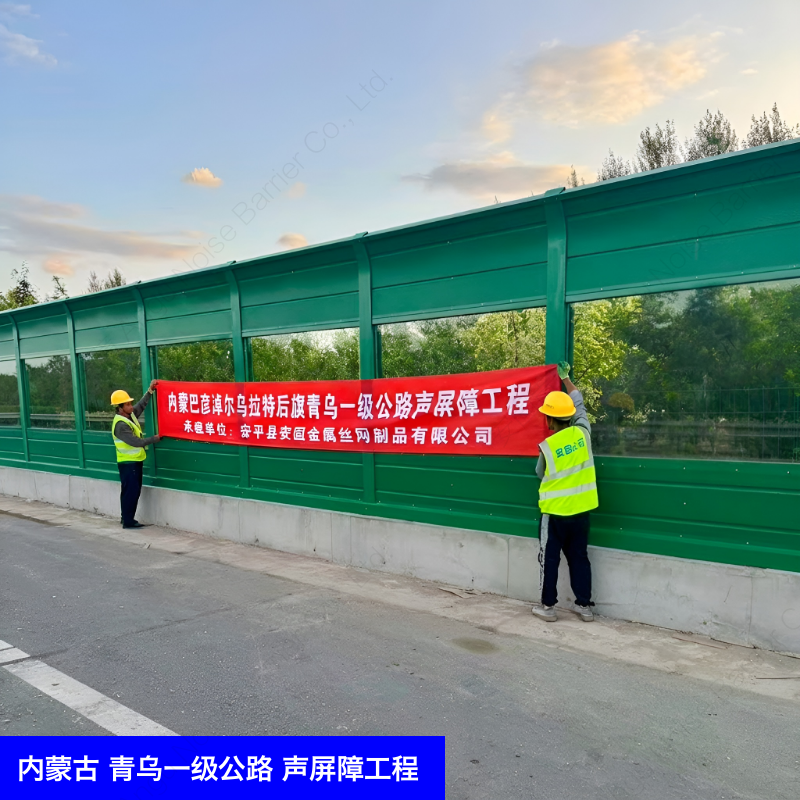

Highway Noise Barrier – Inner Mongolia

Highway Noise Barrier – Inner Mongolia

Inner Mongolia, China

2.5m galvanized steel, cold-region rated, STC 32 · NRC 0.85

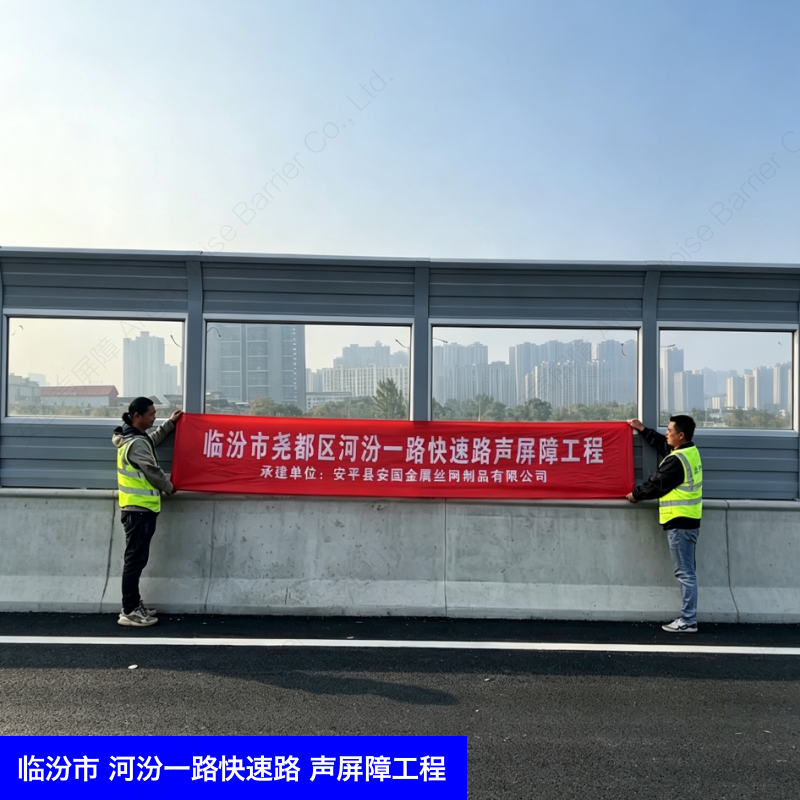

Bridge Noise Barrier – Linfen

Bridge Noise Barrier – Linfen

Linfen, Shanxi, China

4.0m composite acoustic panel, wind-load optimized, STC 34 · NRC 0.85

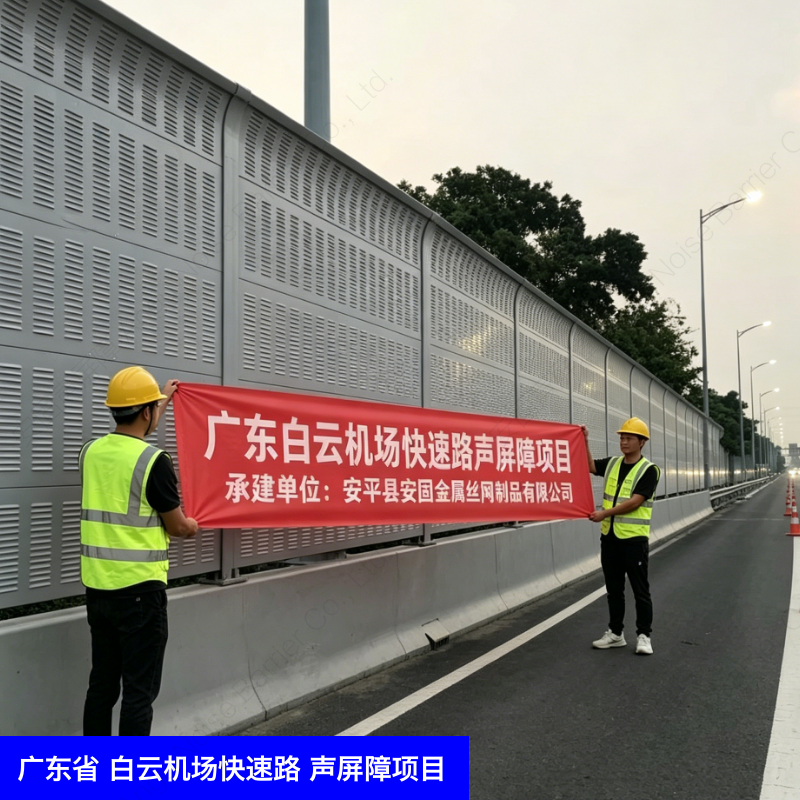

Airport Expressway Noise Barrier – Guangdong

Airport Expressway Noise Barrier – Guangdong

Guangdong, China

3.0m aluminum acoustic panel, coastal anti-corrosion, STC 32 · NRC 0.85

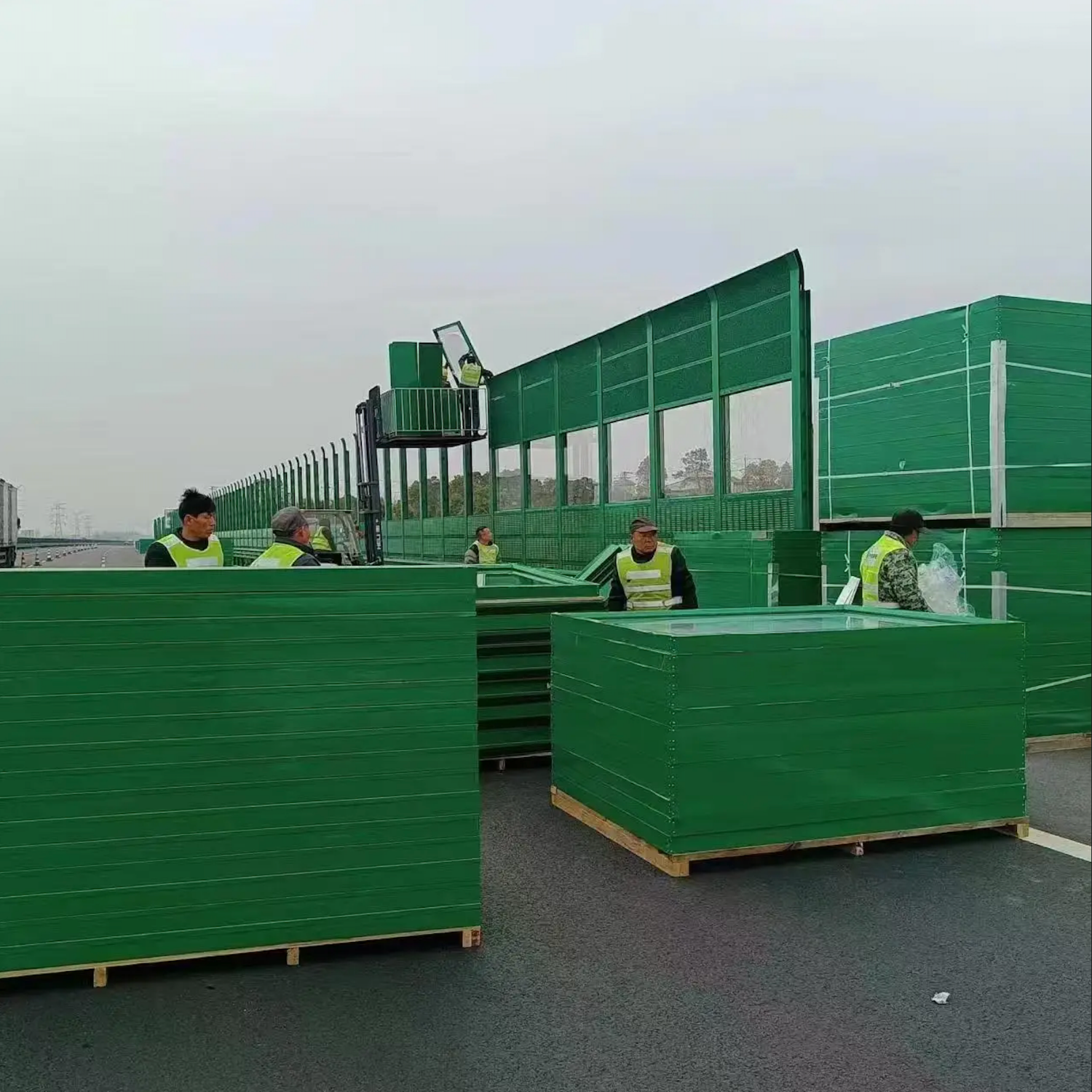

Highway Noise Barrier – Jiangsu

Highway Noise Barrier – Jiangsu

Jiangsu, China

3.0m steel + transparent panel hybrid, STC 32 / 30

STC / NRC are laboratory-rated properties of the panel build-up, not site-measured noise reduction.

All projects shown were delivered inside mainland China (Chongqing, Changsha, Inner Mongolia, Shanxi, Guangdong, Jiangsu) — they are not local projects in your market.

ISO 9001 / 14001 / 45001
Quality · Environment · Safety
SGS Tested
3rd Party Lab Verified
Custom OEM
Your Specs, Our Factory
Fast Production
10–15 Days Standard
CAD Support
Free Engineering Drawings
Export to ASEAN
VN & TH Regular Shipping

Why Choose Us?

Solving the 4 biggest pain points for Southeast Asian contractors and importers

🔇

Superior Noise Reduction

High-density mineral wool core + louvered / micro-perforated panel design. NRC 0.85 and 10–15 dB(A) insertion loss on the panel build-up. Designed to the EN 1793 / GB/T 19884 test methods.

🌧️

Tropical Weather Resistance

Hot-dip galvanized base (≥275g/m² Zn on H-posts, ≥150g/m² on panels) + optional PVDF / polyester powder coating. Salt-spray tested >2000 hours. Withstands Vietnam monsoon and Thailand tropical sun with 15+ year service life.

📐

Custom Engineering & CAD

Free CAD drawings, wind load calculations, and structural analysis for your project. One-stop supply: acoustic panels + H-posts + base plates + bolts + rubber seals. We engineer for Vietnamese expressway specs and Thai DOE requirements.

🚢

Optimized Container Loading

Modular interlocking panel system for maximum container utilization. Typical load: 800–1200 m² per 20ft container. Nestable H-posts reduce freight volume by 40%. Direct shipping to Ho Chi Minh, Hai Phong, Bangkok, Laem Chabang.

Recommended Products

From highways to factories — a noise control solution for every project

Also in this range: Fully Enclosed Noise Barrier Tunnel Sound Enclosure · Equipment Noise Barrier 2.5m Acoustic Steel Panel · Industrial Factory Noise Barrier Wall 4.0m Acoustic Panel

Get a Quote Within 24 Hours

FOB/CIF · Free engineering drawings

Prefer not to fill a form? Message us directly:

By submitting, you agree to our privacy policy.

Technical Specifications

Key engineering parameters for our noise barrier systems. Full data sheets and lab reports available on request.

ParameterSpecification
Panel TypeSound-absorbing (louvered / micro-perforated)
Panel Height2.0m / 2.5m / 3.0m / 4.0m (custom)
NRC (Noise Reduction Coefficient)0.85
STC Rating32 – 34 dB
Insertion Loss10 – 15 dB(A)
Outer Skin0.8mm perforated galvanized steel
Sound Core50–80mm mineral wool, 80 kg/m³
Post TypeH-section 100×100×6×8 or larger
Post Spacing2.0m standard
Surface TreatmentHot-dip galvanized ≥150g/m² (panel) / ≥275g/m² (post)
Powder Coating (Optional)Polyester / PVDF, RAL color options
Fire RatingA1 (non-combustible)
Wind Load≥ 0.8 kPa standard, up to 2.0 kPa custom
Reference StandardsEN 1793, GB/T 19884, ISO 10140 (test methods)

Download Full Data Sheets & Lab Reports

Includes: acoustic test results, salt-spray reports, material certificates. Sent immediately upon request.

Request Technical Documents
12+
Years in Business
30+
Export Countries
36
Product Specifications
5,000 t
Annual Output

Four Things Buyers Can Verify

Certificates you can check

ISO 9001:2015 (06724Q20693R1S), ISO 14001:2015 (06724E20351R1S) and ISO 45001:2018 (06724S30308R1S) certificates are published on our About page and verifiable on China’s CNCA platform. CE documents are sent with the quotation.

Factory audit welcome

Third-party inspection (SGS, BV, TÜV) and video factory tours are arranged before or during production at the buyer’s choice.

Samples before bulk

Trial orders start from 50 m². Panel samples with the actual coating weight and core density are sent before mass production.

FOB Tianjin, documented

Prices are quoted FOB Tianjin with specification, MOQ and lead time stated in writing. Pre-shipment inspection reports are shared before loading.

Frequently Asked Questions

Common questions from contractors and importers

What is the delivery time to Vietnam/Thailand?
10–20 days production + 7–14 days sea freight to Ho Chi Minh, Hai Phong, Bangkok, or Laem Chabang. Total lead time approximately 20–30 days counted from the date the deposit is received.
Do you provide CAD drawings and structural calculations?
Yes. We provide free CAD drawings, wind load calculations, and structural analysis for your project. Acoustic test reports for our panels are available on request from our sales manager. Just send us your project specifications.
What does the quotation include?
FOB or CIF quotation includes: acoustic panels + H-posts + base plates + bolts + rubber seals. Excludes on-site installation (field engineer support available at additional cost).
What is the Minimum Order Quantity (MOQ)?
MOQ starts at 50 m² for standard acoustic panels; most specifications are 100 m². For large projects (>5,000 m²) we offer discounted pricing and phased delivery.
What is the warranty policy?
5-year warranty on hot-dip galvanizing against rust, subject to the written warranty terms in the sales contract. Design service life 15+ years in tropical climate conditions.
Can I customize colors and dimensions?
Yes. Panel dimensions customizable: 2.0m / 2.5m / 3.0m / 4.0m. Colors per RAL chart, polyester or PVDF powder coating available.
How can I reach your team quickly?
WhatsApp and email are our primary channels. WhatsApp +86 188 0318 9797 (answered during working hours, Mon–Fri 8:30–18:00 and Sat 9:00–13:00 UTC+8) or email annie@angumesh.com, which we reply to within 24 hours. The quote form on this page reaches the same inbox.
