    Home/Products/Fencing/Concert Crowd Control Barrier 1.1m x 2.0m Steel

    What Height Crowd Control Barrier Is Required for Outdoor Concert Event Safety?

    Concert Crowd Control Barrier 1.1m x 2.0m Steel

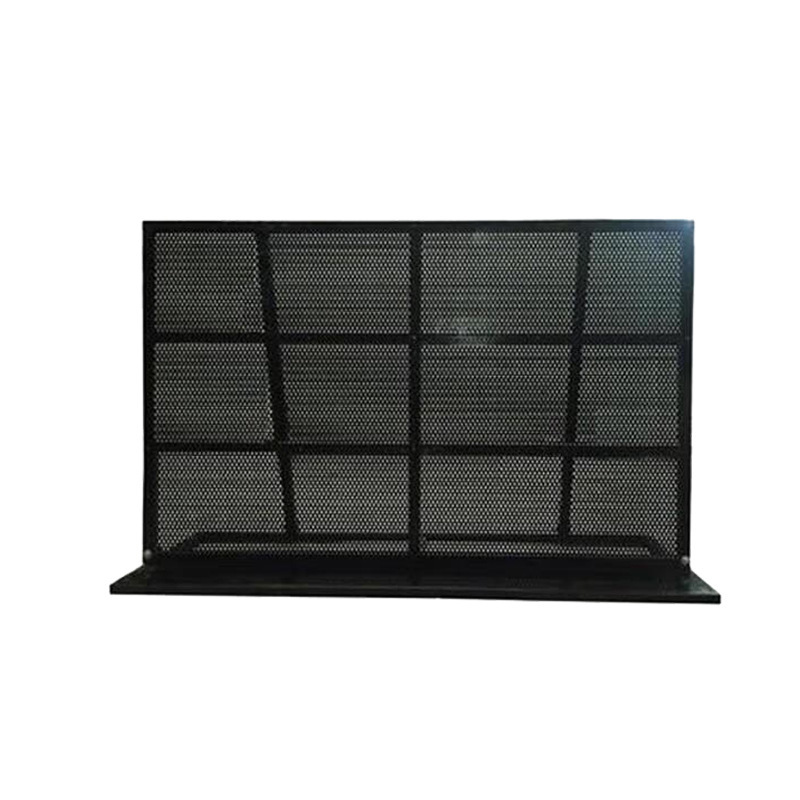

    Concert Crowd Control Barrier 1.1m x 2.0m Steel - 1
    1 / 2

    Overview

    1.1m×2.0m steel crowd control barriers, standard equipment for concerts, festivals, marathons, and public events. Interlocking hooks for secure connections; hot-dipped galvanized for outdoor durability.

    Product Description

    Concert crowd control barriers (also known as barricades, Mojo barriers, or stage barriers) are the industry-standard front-of-stage crowd safety system. Designed to withstand intense crowd pressure at concerts and large events, these steel barriers protect both the audience and performers.

    Design & Function

    The barrier's primary functions:

    • Crowd Surge Absorption: Angled front panel (30 degrees) distributes crowd pressure downward and forward, preventing crushing at the stage front
    • Security Channel: Creates a walkway between barrier and stage for security/medical personnel to reach crowd quickly
    • Crowd Extraction: Low back step allows security to pull distressed individuals over the barrier safely
    • Perimeter Definition: Clearly marks the audience boundary, preventing stage incursion

    Construction

    • Frame: 40mm x 40mm x 2.0mm steel square tube, fully welded
    • Front Panel: 1.5mm steel sheet, punched with anti-glare perforations
    • Top Rail: 40mm round tube — smooth surface prevents injury when crowd leans
    • Back Step: 200mm wide flat step at 500mm height — security standing platform
  • Feet: Folding steel feet (400mm x 100mm) with rubber pads — deploy and fold flat for transport
  • Interlocking: Male/female hook system — barriers lock end-to-end forming continuous wall
  • Finish: Powder-coated black (standard). Custom colors available.
  • Key Advantages

    • Proven Safety: Used at major concerts and festivals worldwide. Engineered to 300 kg/m crowd pressure.
    • Rapid Deployment: Folding feet — deploy in seconds. Interlocking system — no tools or hardware needed.
    • Stackable: Barriers stack 10-high for compact transport and storage.
    • Durable Powder Coat: Scratch and chip resistant. Maintains professional appearance after hundreds of uses.
    • Modular: Any length achievable by adding barriers. Corners and gates available.
    • Weatherproof: Galvanized under-layer + powder coat = outdoor storage without rust.

    Technical Specifications

    ParameterValue
    Dimensions1.1m (H) x 2.0m (W)
    Frame40x40x2.0mm steel square tube
    Front Panel1.5mm perforated steel sheet
    Top Rail40mm round steel tube
    Back Step200mm wide at 500mm height
    FeetFolding steel, 400x100mm with rubber pads
    Weight~25 kg per panel
    Crowd Pressure Rating300 kg/m
    FinishPowder-coated black (galvanized under-layer)
    InterlockingHook-and-loop steel system
    Stacking10-high for transport

    Applications

    • Concerts & Festivals: Front-of-stage barricades
    • Sporting Events: Crowd channeling at stadiums and arenas
    • Parades & Marathons: Route barriers and spectator control
    • Political Rallies: Security perimeters and VIP protection
    • Trade Shows: Booth boundaries and crowd flow
    • Public Gatherings: Square and plaza crowd management
    • Emergency Scenes: Perimeter establishment for first responders

    Packaging & Delivery

    • Packaging: Stacked 10-high, banded with steel straps. Foam protectors on corners.
    • Container Loading: 20ft GP ~ 250-350 panels; 40ft HQ ~ 500-700 panels
    • Lead Time: 7-12 days standard; 12-20 days custom colors
    • Shipping: FOB Tianjin / CIF / DDP

    Applications

    Concerts & festivalsSporting eventsParades & marathonsPolitical ralliesTrade showsPublic gatheringsEmergency scenes
    SKU: concert-crowd-barrier

    Concert Crowd Control Barrier 1.1m x 2.0m Steel

    1.1m×2.0m steel crowd control barriers, standard equipment for concerts, festivals, marathons, and public events. Interlocking hooks for secure connections; hot-dipped galvanized for outdoor durability.

    Specifications

    Concert Crowd Control Barrier 1.1m x 2.0m Steel Technical Specifications
    Dimensions1.1m (H) x 2.0m (W)
    Frame40x40x2.0mm steel square tube
    Front Panel1.5mm perforated steel sheet
    Top Rail40mm round steel tube
    Back Step200mm wide at 500mm height
    FeetFolding steel, 400x100mm + rubber pads
    Weight~25 kg per panel
    Crowd Pressure Rating300 kg/m
    FinishPowder-coated black (galvanized under-layer)
    InterlockingHook-and-loop steel system
    Stacking10-high
    MOQ50 pieces

    FOB Tianjin, per panel

    FOB Price
    $35/unit
    💬 Chat on WhatsApp
    ✓ ISO 9001✓ CE🌍 30+ Countries🏭 Factory Direct
    📞+86 188 0318 9797
    ✉️anguwiremesh@gmail.com

    Frequently Asked Questions

    What is the load capacity of your concert crowd barrier and is it certified for public events?
    Our concert crowd control barrier (1.1m × 2.0m) is tested to withstand a horizontal crowd pressure of 5.0 kN/m (equivalent to ~500 kg per linear meter), compliant with the UK "Guide to Safety at Sports Grounds" (Green Guide) Chapter 11. The interlocking hook-and-eyelet connection between panels distributes force across the entire barrier line. With flat steel feet (removable) secured by crowd weight on the front foot, the barrier resists overturning even under surging crowds. Each 1.1m panel weighs approximately 18kg — light enough for rapid deployment, heavy enough for stability. We have supplied barriers for music festivals of 50,000+ capacity in Europe and Asia.
    Can your crowd barriers be branded with event logos or sponsor colors?
    Yes — we offer powder coating in custom RAL colors for branded events. Common options include event sponsor colors, festival branding, and high-visibility safety yellow for crowd guidance lanes. The powder coating is applied after galvanizing (duplex system) for both color and corrosion protection. For smaller orders (<100 panels), we also supply vinyl wrap templates that can be applied on-site for temporary branding. Minimum order for custom color powder coating: 200 panels. Lead time: +10 working days vs standard galvanized finish. Overnight vinyl wraps: available for any quantity.
    What surface treatment options are available for wire mesh products?
    We offer hot-dipped galvanized (≥80g/m² zinc coating, suitable for outdoor exposure), electro-galvanized (lighter coating for indoor use), and PVC coated (0.5mm PVC layer over galvanized core, available in green/black/white). For marine or highly corrosive environments, we recommend PVC coated or stainless steel options. Our hot-dipped galvanized products pass ISO 1461 salt spray testing with 200+ hours to red rust.
    What wire diameters and mesh sizes can you manufacture?
    Our production lines support wire diameters from 0.5mm to 5.0mm, and mesh apertures from 6mm to 300mm. We can customize any specification within this range. For standard stock items, common diameters are 1.5mm, 2.0mm, 2.5mm, 3.0mm, and 4.0mm. Custom diameters are available with MOQ adjustments. Each batch includes a mill test certificate with actual tensile strength and zinc coating weight readings.
