Equipment noise barrier, 2.5m high. Sound-absorbing steel panel with mineral wool core. NRC 0.85. For HVAC, generators, pumps, compressors. MOQ 50 m2, 10-20 day delivery.
Equipment noise barriers are modular acoustic enclosures designed to reduce industrial equipment noise transmission to surrounding areas. The 2.5m height is specifically engineered for typical industrial equipment β providing sufficient barrier height to block direct sound paths from generators, compressors, pumps, and HVAC units.
## Acoustic Design
The barrier panel is a composite sound-absorbing structure: - **Outer Skin**: 0.8mm perforated galvanized steel (sound-transparent facing) - **Core**: 50mm mineral wool insulation (80 kg/m3 density) - **Inner Skin**: 0.6mm solid galvanized steel (sound-reflective backing) - **Frame**: 1.5mm galvanized steel edge channel - **Acoustic Performance**: NRC 0.85 (absorbs 85% of incident sound), STC 32 (reduces 32dB through panel)
## How It Works
1. **Sound Wave Approaches**: Equipment noise radiates outward as spherical waves 2. **Perforated Face**: Outer perforated skin allows sound waves to enter the panel 3. **Mineral Wool Absorption**: Sound energy converted to heat by friction in mineral wool fibers 4. **Solid Backing**: Inner solid skin prevents residual sound transmission through panel 5. **Barrier Shadow**: Panel creates acoustic shadow zone behind barrier β typically 10-15dB reduction at receiver position
## Key Advantages
- **High Absorption**: NRC 0.85 β absorbs 85% of sound hitting panel surface. Prevents reverberant buildup. - **Weatherproof**: Galvanized steel + moisture-resistant mineral wool. Suitable for outdoor equipment. - **Modular**: Standard panel 2.0m x 0.5m. Connect to form any length and height. - **Self-Supporting**: Panels slide into steel posts β no additional framing needed. - **Fire Resistant**: Mineral wool core is non-combustible (A1 fire rating). Meets building codes. - **Maintenance Free**: Galvanized steel surface. No painting required for 15+ years.
## Technical Specifications
| Parameter | Value | |-----------|-------| | Panel Height | 2.5m | | Panel Width | 0.5m (standard) | | Panel Thickness | 100mm | | Outer Skin | 0.8mm perforated galvanized steel | | Core | 50mm mineral wool, 80 kg/m3 | | Inner Skin | 0.6mm solid galvanized steel | | Frame | 1.5mm galvanized steel edge channel | | NRC | 0.85 | | STC | 32 | | Fire Rating | A1 (non-combustible) | | Post Type | H-section steel 100x100x6x8 | | Post Spacing | 2.0m | | Wind Load | 0.8 kPa (design) | | Zinc Coating | >=120g/m2 (all steel) | | Standard | GB/T 19889, ISO 717 |

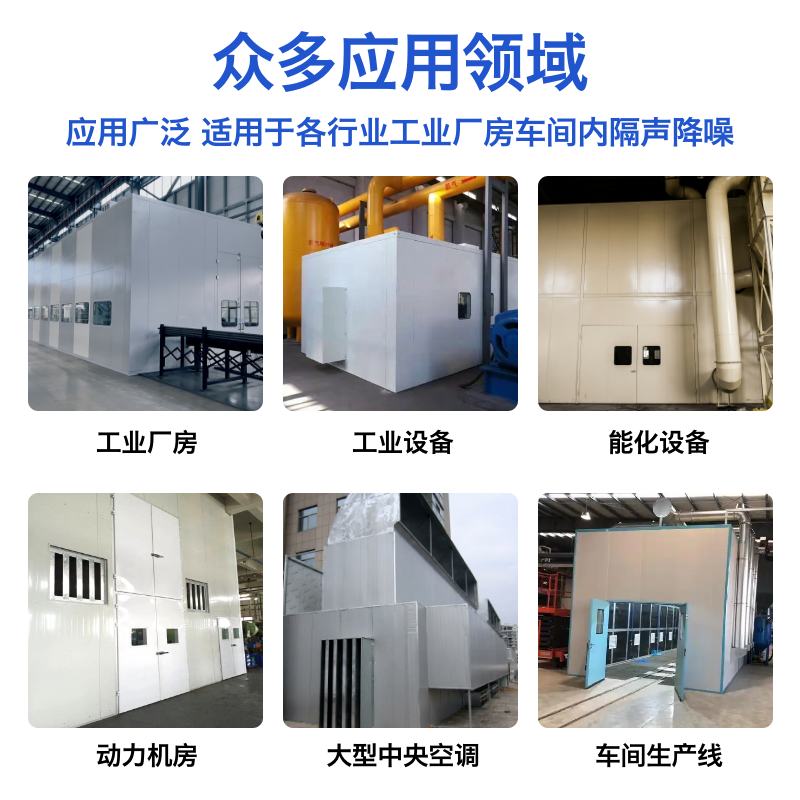

## Applications
- **Power Generation**: Diesel generators, gas turbines, transformer stations - **HVAC Systems**: Chillers, cooling towers, air handling units - **Compressed Air**: Air compressors and receiver tanks - **Pumps**: Water pumps, hydraulic power units, vacuum pumps - **Manufacturing**: CNC machines, presses, stamping equipment - **Oil & Gas**: Refinery equipment, pipeline compressor stations - **Data Centers**: Backup generators and cooling equipment
## Packaging & Delivery
- **Packaging**: Panels stacked vertically on pallets (20 panels/pallet). Posts bundled. - **Container Loading**: 20ft GP ~ 200-400 m2 panels; 40ft HQ ~ 400-800 m2 - **Lead Time**: 10-20 days standard; 20-30 days custom dimensions/colors - **Shipping**: FOB Tianjin / CIF / DDP
Equipment noise barrier, 2.5m high. Sound-absorbing steel panel with mineral wool core. NRC 0.85. For HVAC, generators, pumps, compressors. MOQ 50 m2, 10-20 day delivery.
| Panel Height | 2.5m |
|---|---|
| Panel Width | 0.5m (standard) |
| Panel Thickness | 100mm |
| Outer Skin | 0.8mm perforated galvanized steel |
| Core | 50mm mineral wool, 80 kg/m3 |
| Inner Skin | 0.6mm solid galvanized steel |
| Frame | 1.5mm galvanized steel edge channel |
| Nrc | 0.85 |
| Stc | 32 |
| Fire Rating | A1 (non-combustible) |
| Post Type | H-section 100x100x6x8 |
| Post Spacing | 2.0m |
| Wind Load | 0.8 kPa |
| Standard | GB/T 19889, ISO 717 |
| MOQ | 50 pieces |
FOB Tianjin, per m2
